Ammonia-rich hail sheds new light on Jupiter’s weather

Universe

New Juno results suggest that the violent thunderstorms taking place in Jupiter’s atmosphere may form ammonia-rich hail, or ‘mushballs’, that play a key role in the planet’s atmospheric dynamics. This theory, developed using data from Juno’s microwave radiometer by the Juno team, is described in two publications led by a researcher at the Laboratoire Lagrange (CNRS/Observatoire de la Côte d’Azur/Université Côte d’Azur) with support from the CNES. The theory sheds light on some puzzling aspects of the meteorology of Jupiter and has implications for how giant planet atmospheres work in general. This, and related findings, are presented in a series of three articles published in the journals Nature and JGR Planets.

Water is a key substance in the meteorology of planets and is believed to play a key role in their formation. Terrestrial storms are driven by water dynamics creating lightning storms thought to be connected to regions where multiple phases of water co-exist (solid, liquid and gas). As on Earth, Jupiter’s water is moved around by thunderstorms. Those are thought to form within the planet’s deep atmosphere, around 50 km below the visible clouds, where the temperature is close to 0°C. When these storms are powerful enough, they carry crystals of water-ice into the upper atmosphere.

In the first article, researchers from the US and the Laboratoire Lagrange suggest that when these crystals interact with gaseous ammonia, the ammonia acts as an anti-freeze, changing the ice to a liquid. On Jupiter as on Earth, a mixture of 2/3 water and 1/3 ammonia gas will remain liquid down to a temperature of -100°C. The ice crystals which have been lofted high into Jupiter’s atmosphere are melted by ammonia gas, forming a water-ammonia liquid, and become the seeds for exotic ammonia hailstones, dubbed ‘mushballs’ by the researchers. The mushballs being heavier then fall deeper into the atmosphere until they reach a point where they evaporate. This mechanism drags ammonia and water down to deep levels in the planet’s atmosphere.

Measurements by Juno discovered that while ammonia is abundant near Jupiter’s equator, it is highly variable and generally depleted elsewhere to very deep pressures. Prior to Juno, scientists saw evidence that parts of Jupiter’s atmosphere were depleted in ammonia to relatively shallow depths, but this had never been explained. To explain Juno’s discovery of ammonia’s deep variability across most of Jupiter, the researchers developed an atmospheric mixing model that is presented in a second article. Here they show that the presence of thunderstorms and the formation of water-ammonia mushballs dry out the deep atmosphere of its ammonia and account for the variations observed by Juno as a function of latitude.

In a third article, the researchers report observations of Jovian lightning flashes by one of Juno’s cameras. The small flashes appear as bright spots on the cloud tops, with sizes proportional to their depth in Jupiter’s atmosphere. Unlike previous missions that had only observed lightning flashes from deep regions, Juno’s proximity to the planet enabled it to detect smaller, shallower flashes. These flashes come from regions where temperatures are below -66°C and where water alone cannot be found in the liquid state. Yet the presence of a liquid is thought to be crucial to the lightning-generation process. Juno’s detection of “shallow lightning” storms at the altitudes where liquid ammonia-water can be created is observational support that the mushball mechanism may indeed be at work in Jupiter’s atmosphere.

Understanding the meteorology of Jupiter and of other as yet unexplored giant planets such as Uranus and Neptune should enable us to better comprehend the behaviour of gas giant exoplanets outside our own Solar System.

Cyclone observed in Jupiter’s northern hemisphere by JunoCam in July 2018. The central part covers an area of 3200 x 3800 km. White clouds of ammonia can be seen, rotating anticlockwise. Clouds rising as much as 15 km above the others (based on the shadow they cast) are visible in several places, especially in the upper central part of the cyclone. These storms are thought to contain a kind of water-ammonia hail (‘mushballs’) specific to Jupiter’s atmosphere, which drags the ammonia down into the deep atmosphere and may explain the presence of shallow lightning flashes.
© NASA/JPL-Caltech/SwRI/MSSS/Kevin M. Gill
#

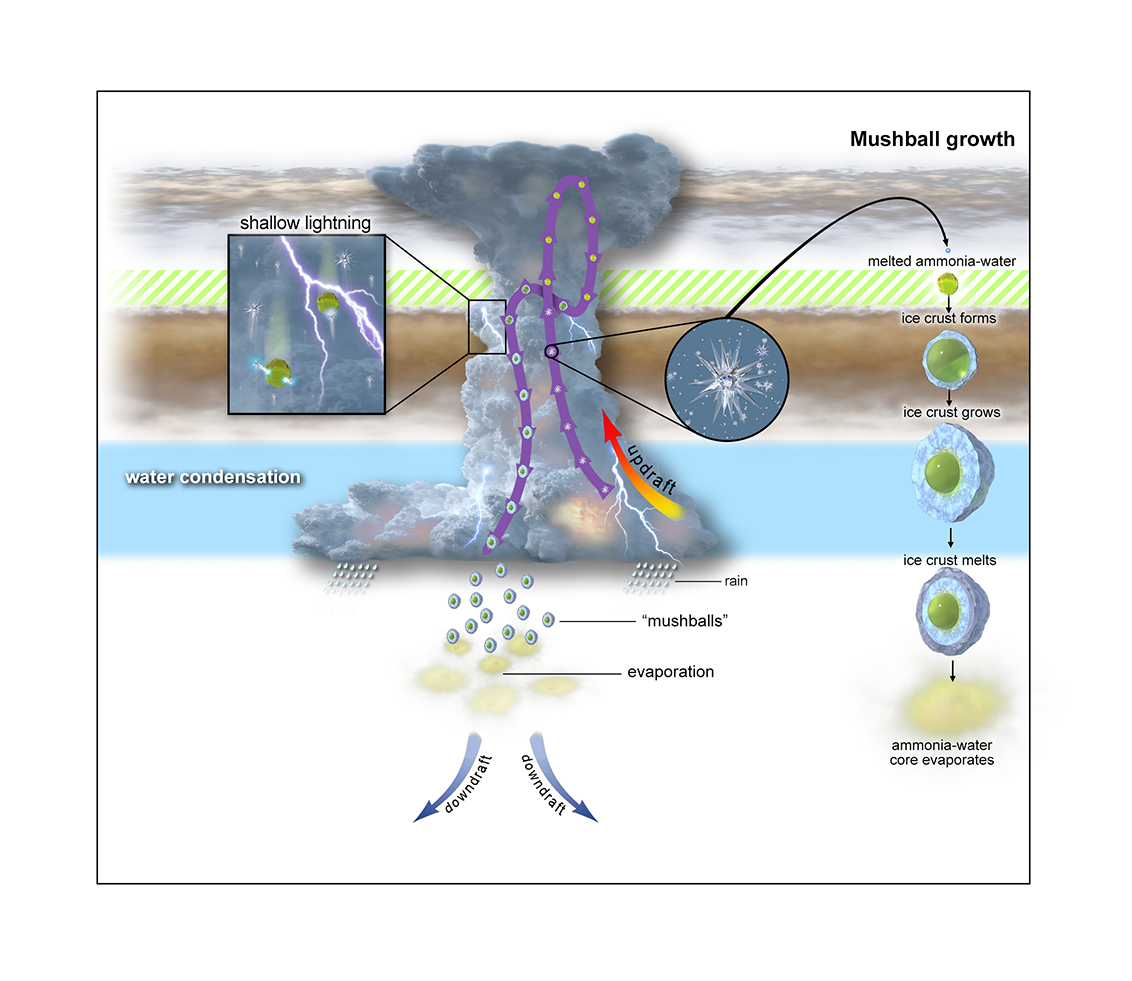

This graphic depicts the evolutionary process of “shallow lightning” and ammonia-water hailstones called "mushballs." An anvil-shaped thunderstorm cloud originates about 40 miles (65 kilometers) below Jupiter's visible cloud deck. Powered by water-based moist convection, the cloud generates strong updrafts that move liquid water and water ice particles upward. About 12 miles (19 kilometers) up, temperatures are so low that all of the water particles turn to ice. Still climbing, the ice particles cross a region located about 14 miles (23 kilometers) below the upper clouds, where temperatures are between minus 121 degrees Fahrenheit (minus 85 degrees Celsius) and minus 150 degrees Fahrenheit (minus 100 degrees Celsius), (depicted as green-hashed layer). At that point, ammonia vapor in the atmosphere acts like an antifreeze, melting the water-ice crystals, transforming them into ammonia-water liquid droplets which then grow and gather a solid icy shell to become mushballs. Once big enough, these slushy hailstones fall down, transporting both ammonia and water into Jupiter's deep atmosphere where the mushballs eventually evaporate.
© NASA/JPL-Caltech/SwRI/CNRS



Bibliography

Storms and the Depletion of Ammonia in Jupiter: I. Microphysics of “Mushballs”. T. Guillot, D. J. Stevenson, S. K. Atreya, S. J. Bolton, H. N. Becker. JGR Planets, 6 August 2020. DOI: 10.1029/2020JE006403

Storms and the Depletion of Ammonia in Jupiter: II. Explaining the Juno observations. T. Guillot, C. Li, S. J. Bolton, S. T. Brown, A. P. Ingersoll, M. A. Janssen, S. M. Levin, J. I. Lunine, G. S. Orton, P. G. Steffes, D. J. Stevenson. JGR Planets, 6 August 2020. DOI: 10.1029/2020JE006404

Small lightning flashes indicating shallow electrical storms. H. N. Becker, J. W. Alexander, S. K. Atreya, S. J. Bolton, M. J. Brennan,  S. T. Brown, A. Guillaume, T. Guillot, A. P. Ingersoll, S. M. Levin1, J. I. Lunine, Y. S. Aglyamov, P. G. Steffes. Nature, 6 August 2020. DOI: 10.1038/s41586-020-2532-1
